Background

I wanted to build an animatronic hand puppet. I think it turned out pretty well! The big challenge I faced was trying to sync up the movement with the speech. I still have this in storage, and one of these days I'll bring it back to life. I think it still has potential even after all these years.

Electronics

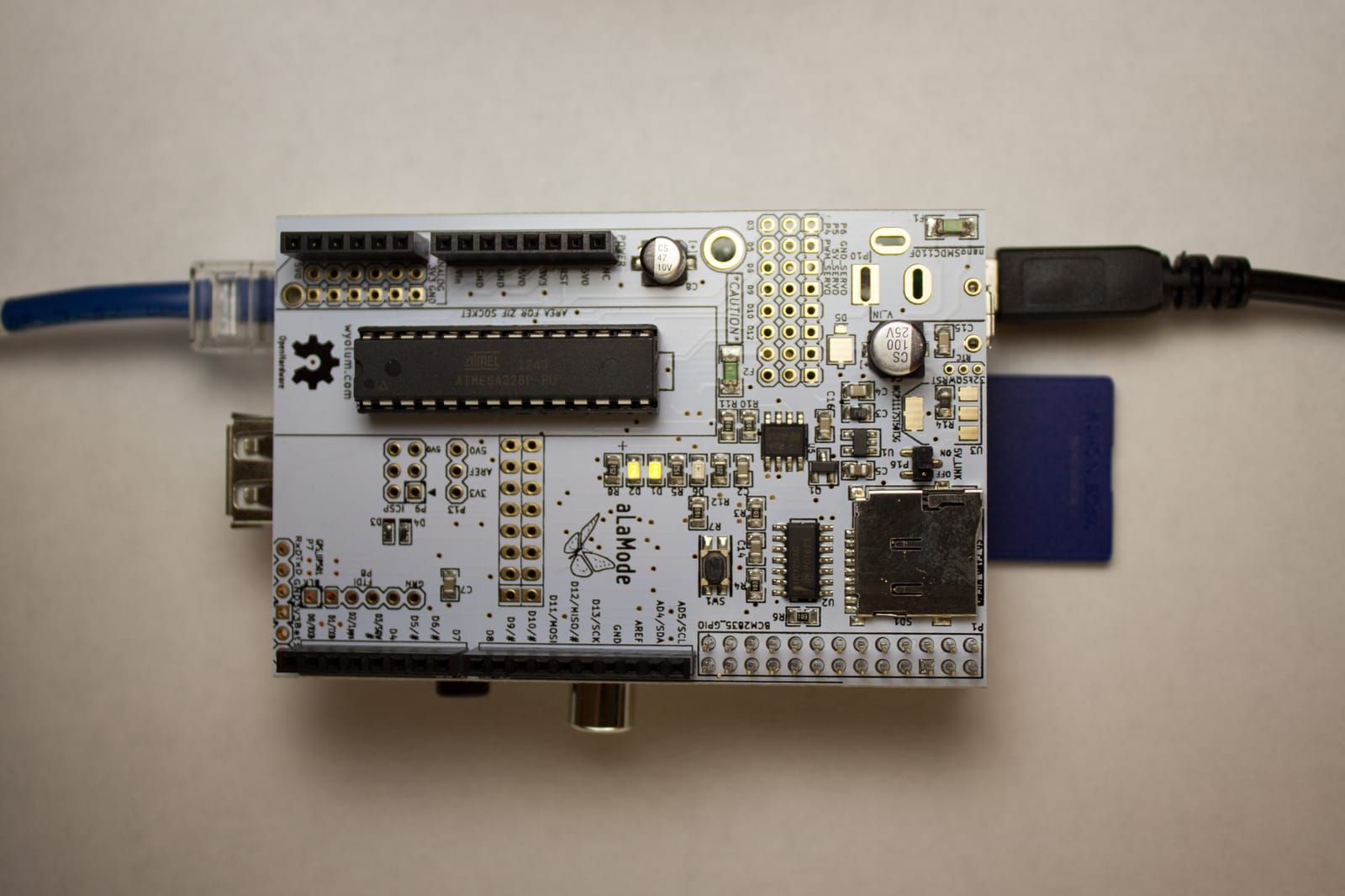

Alamode Pi hat for servo control

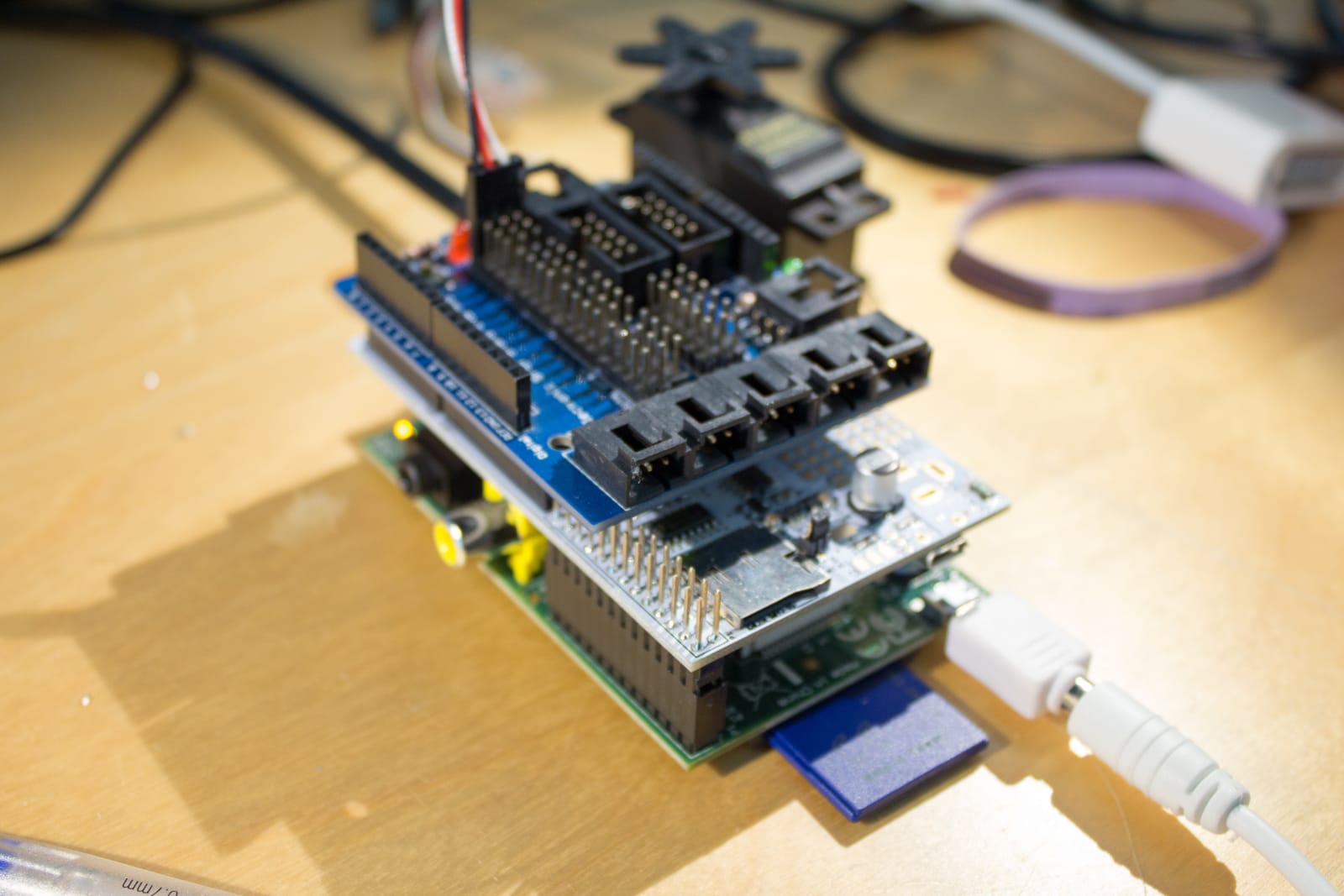

Alamode with servo hat attached

Speaker Assembly

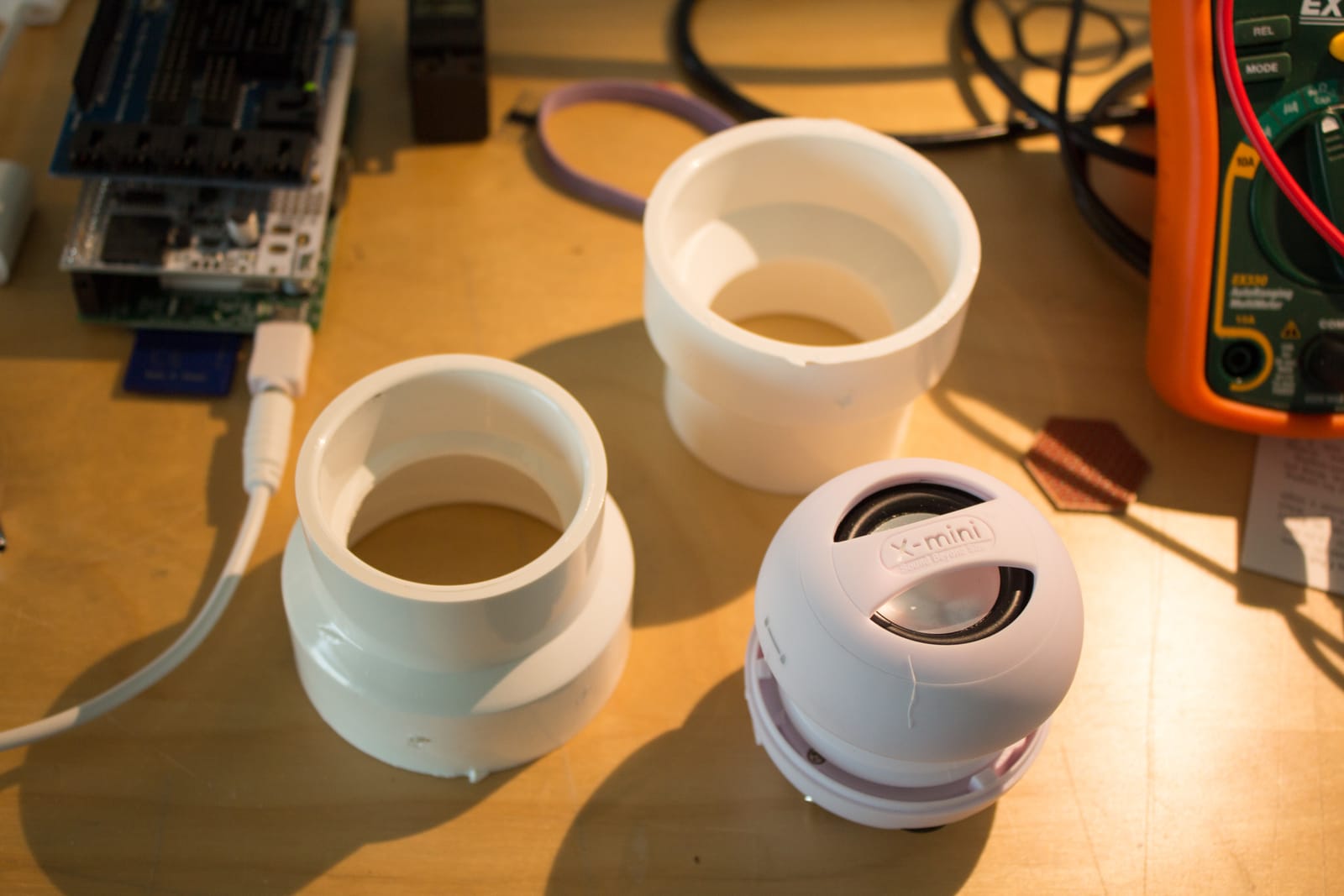

Speaker assembly

Speaker enclosure

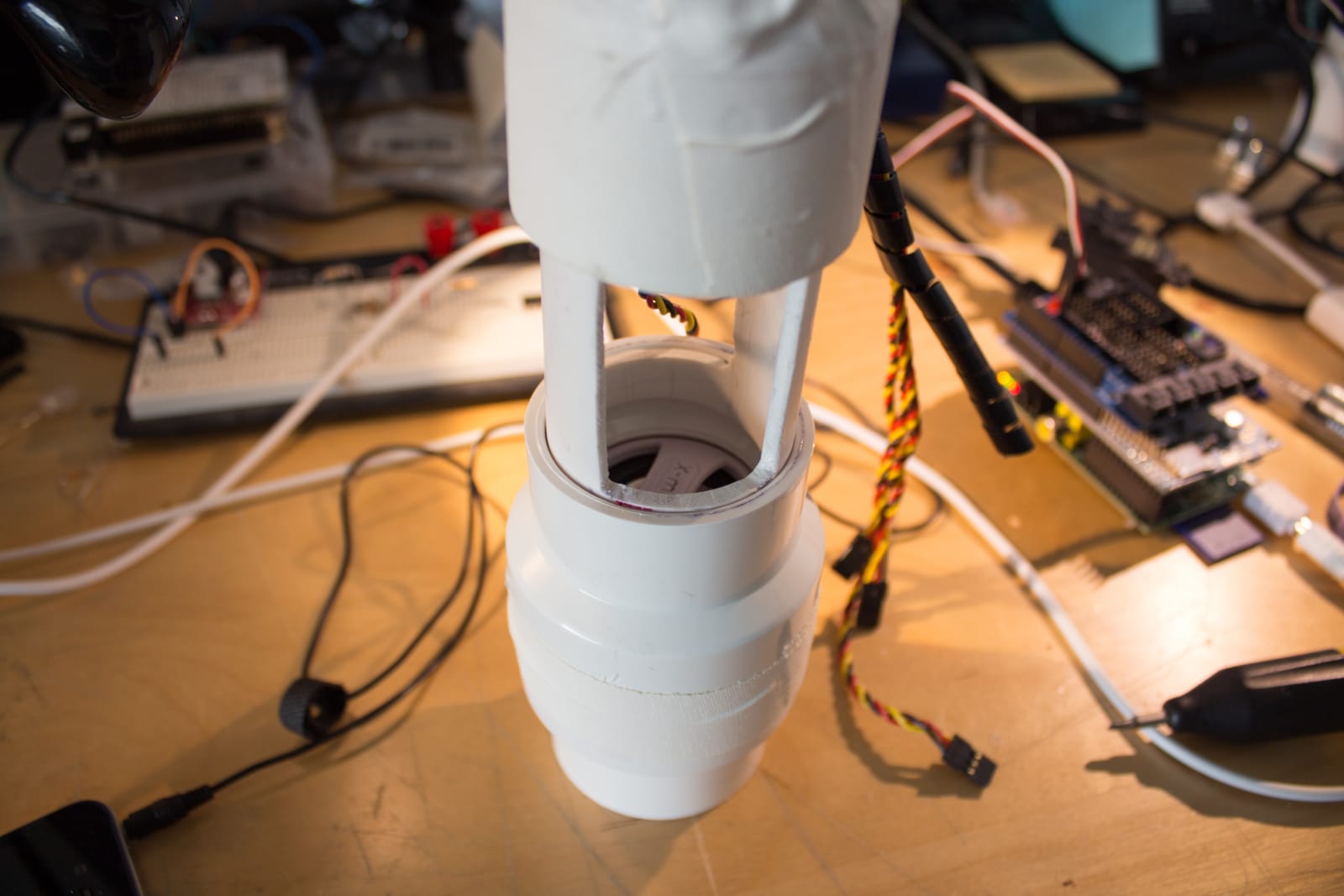

Speaker v2

Mechanical Assembly

V1

V1 arm mechanism

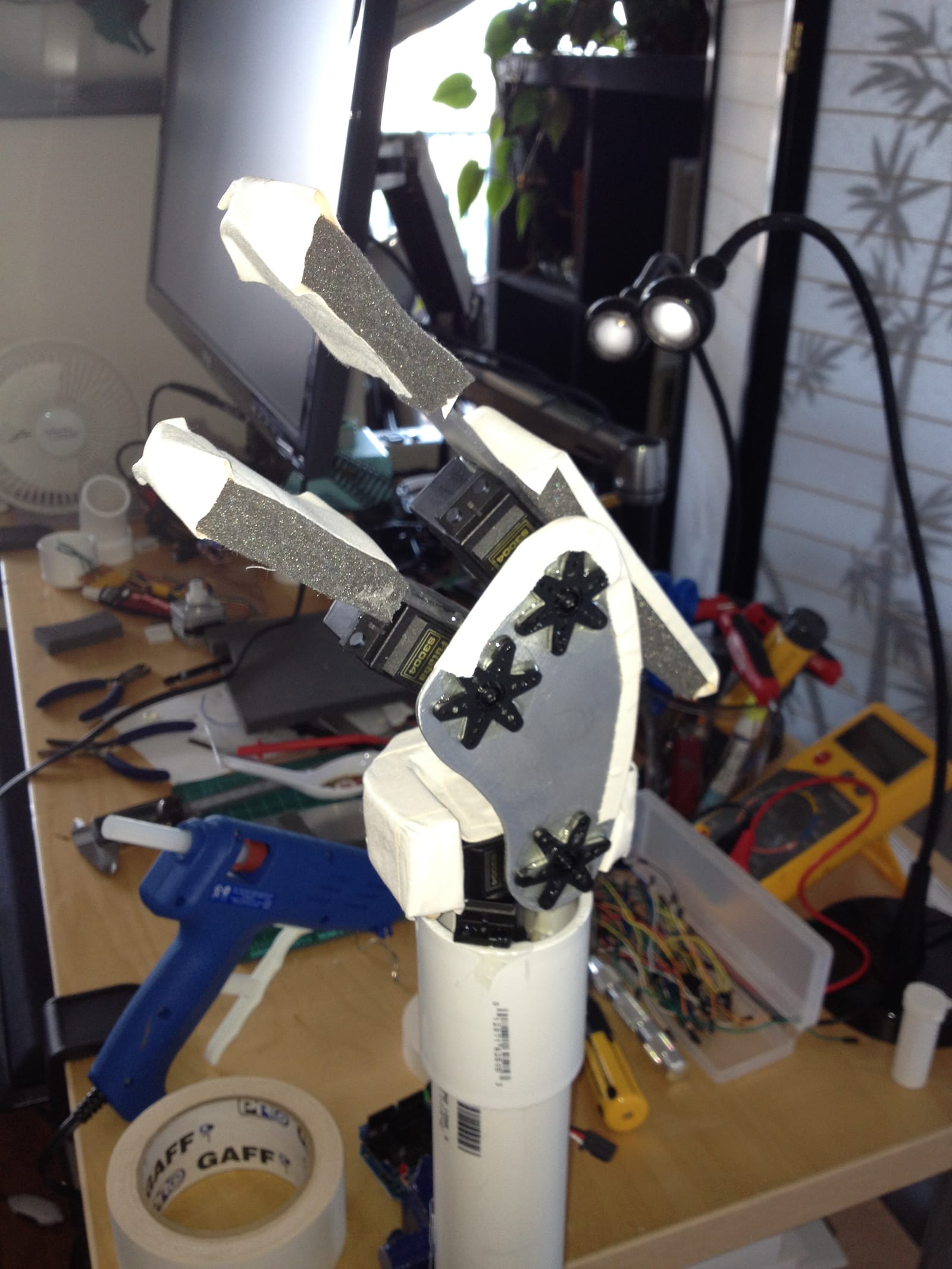

V1 motor mount

V2

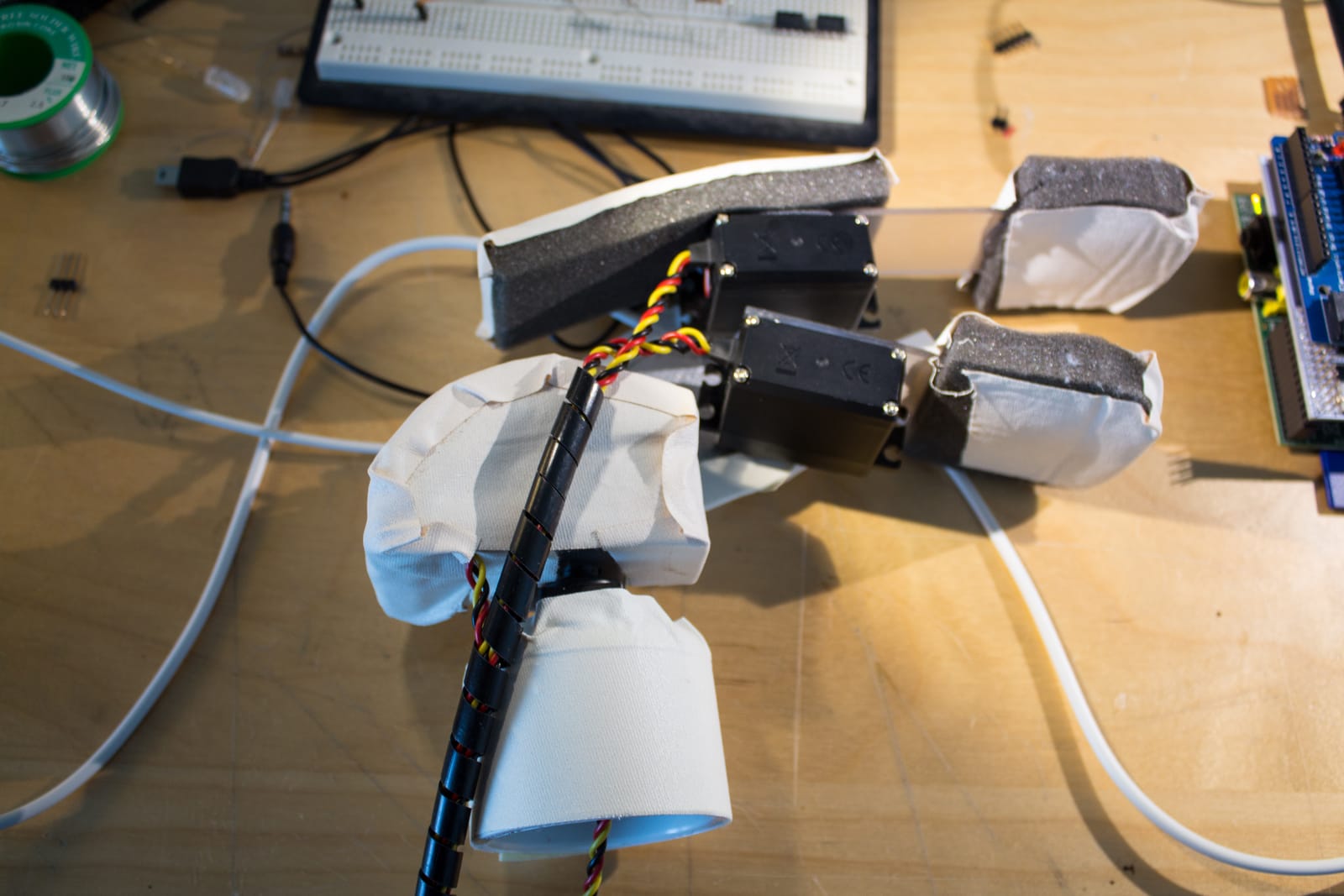

V2 motors

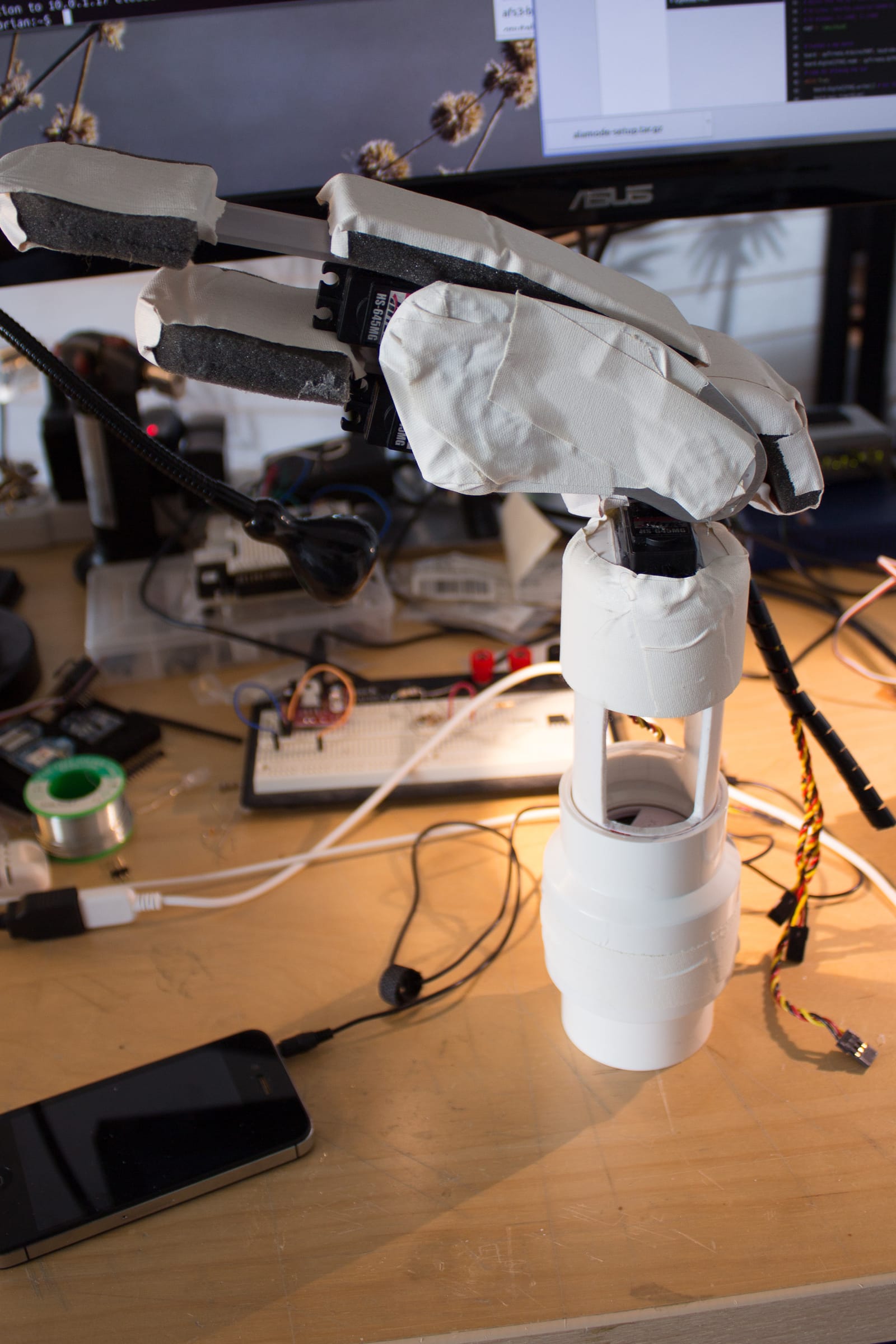

V2 motors with speaker integrated

Glam shots...
